How To Test The Coil-On-Plug Ignition Coil (2000-2003 3.0L V6 Honda Accord)

TEST 3: Making Sure The Ignition Coil Is Getting Ground

In TEST 2, your multimeter (or test light) confirmed that the non-sparking ignition coil is getting 10 to 12 Volts DC.

The next step is to verify that that the non-sparking ignition coil is getting Ground.

The wire that delivers Ground to the ignition coil is the wire labeled with the number 2 in the photo above.

We'll check for the presence of this Ground by doing a multimeter voltage test.

NOTE: Be careful when probing the front of the female terminal of the ignition coil's connector to avoid damaging it.

IMPORTANT: All ignition coil connectors on this engine share the same wire layout and functions (12 Volts, Ground, and activation signal), regardless of which cylinder you're testing.

These are the test steps:

1. 1

   Disconnect the ignition coil from its electrical connector.

2. 2

   Put the multimeter in Volts DC mode.

3. 3

   Probe the front of the terminal that connects to wire labeled with the number 2 with the black multimeter test lead (using an appropriate tool).

4. 4

   Connect the red multimeter test lead to the battery positive (+) terminal.

5. 5

   Have your helper turn the key to the ON position.

6. 6

   You should see 10-12 Volts on your multimeter.

   If you're using a 12 Volt test light, the test light should light up.

Let's examine your test result:

CASE 1: The multimeter registered 10-12 Volts (or the test light lit up). This is the correct test result and confirms that the ignition coil is getting Ground.

The next step is to verify that the ignition coil is receiving a Triggering signal, go to: TEST 4: Testing For The Presence Of The Triggering Signal.

CASE 2: The multimeter DID NOT register 10-12 Volts (or the test light DID NOT light up). This test results tells you that the ignition coil is not getting Ground and without it, the ignition coil will not spark.

This test result eliminates the COP ignition coil itself as bad and as the source of the misfire condition.

Since the Ground circuit is shared by all of the COP ignition coils, the most likely cause of this Ground is a bad ignition coil connector or an open-circuit problem in the wire between the connector and the engine wiring harness.

TEST 4: Testing For The Presence Of The Triggering Signal

So far, you've confirmed that the non-sparking coil is:

• Receiving 10 to 12 Volts (TEST 2).
• Receiving Ground (TEST 3).

The next step is to verify that that the non-sparking ignition coil is receiving its triggering (activation) signal from the fuel injection computer.

There are two ways of doing this test, with a multimeter that can read Hertz frequency or just by swapping coils. If you just want to test them by swapping COP coils, go to: TEST 5: Testing The Triggering Signal Without A Multimeter.

Testing for the triggering signal should be done with the ignition coil connected to its connector. I recommend using a back probe or a wiring piercing probe to access the signal within the wire. You can see an example of this tool here: Wire-Piercing Probe.

These are the test steps:

1. 1

   Place the multimeter in Hertz (Hz) mode.

2. 2

   Reconnect the ignition coil to its electrical connector.

3. 3

   Probe the wire labeled with the number 3 with the black multimeter test lead using an appropriate tool to pierce the wire or to back-probe the connector.

4. 4

   Connect the red multimeter test lead to the battery positive (+) terminal.

5. 5

   Crank and start the engine.

6. 6

   You should see fluctuating values of 30 to 60 Hertz as the engine starts and runs on your multimeter.

Let's examine your test result:

CASE 1: The multimeter registered 30 to 60 Hertz (Hz) as the engine cranked and started. This is the correct test result and confirms that the Triggering signal is present.

You can conclude that this particular Coil-On-Plug ignition coil on your Honda is bad and needs to be replaced if you have:

• Confirmed that it's not sparking (TEST 1).
• Confirmed that it's getting 10 to 12 Volts (TEST 2).
• Confirmed that it's getting Ground (TEST 3).
• Confirmed that it's getting an activation signal (this test section).

CASE 2: The multimeter DID NOT register 30 to 60 Hertz (Hz) as the engine cranked and started. Re-check all of your connections and repeat the test again.

If still no Hertz readings, then this results eliminates the ignition coil as the source of the no-spark condition/misfire, since without the Triggering signal the ignition coil will not work.

TEST 5: Testing The Triggering Signal Without A Multimeter

Making sure that the triggering signal is present can be done without a multimeter and it simply involves swapping out the non-sparking ignition coil with a good-sparking ignition coil.

If the good-sparking ignition coil sparks when connected to the non-sparking ignition coil's electrical connector, then you can conclude that the triggering signal is present in the connector.

Let's get testing:

1. 1

   Remove the COP coil that did not spark and set it aside.

2. 2

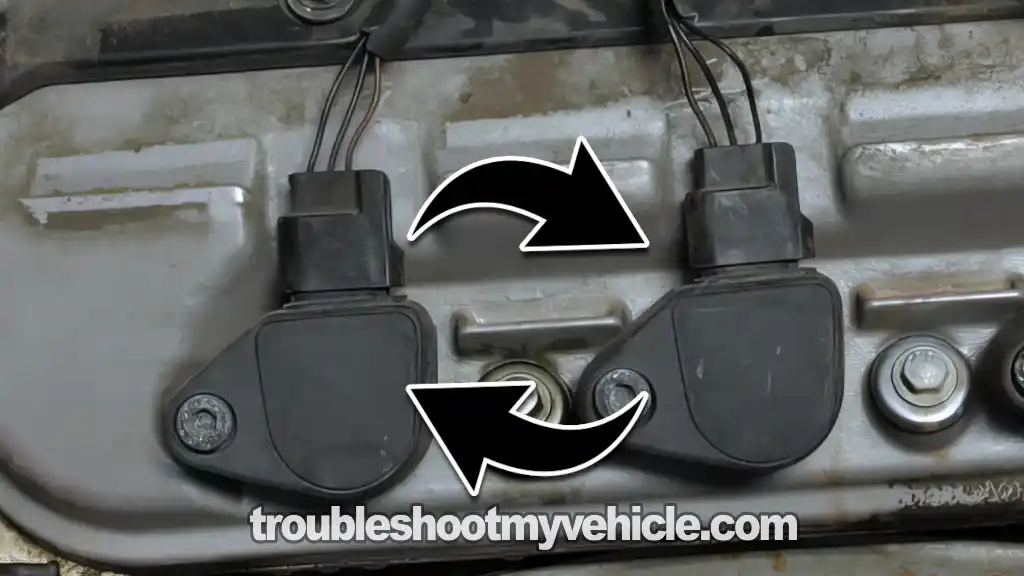

   Choose one of the adjacent COP ignition coils that does spark and remove it from its place.

3. 3

   Connect the good COP coil to the connector of the bad COP ignition coil.

4. 4

   Connect the HEI spark tester to this good COP coil.

5. 5

   Ground the HEI spark tester with a jump start cable directly on the battery negative (-) terminal.

6. 6

   When all is ready, have your trusty assistant crank the engine.

7. 7

   The good ignition coil should spark.

Here are the test result interpretations:

CASE 1: You got spark. This is the correct test result and confirms that the triggering signal is present in the connector.

You can conclude that this particular Coil-On-Plug ignition coil on your Honda is bad and needs to be replaced if you have:

• Confirmed that it's not sparking (TEST 1).
• Confirmed that it's getting 10 to 12 Volts (TEST 2).
• Confirmed that it's getting Ground (TEST 3).
• Confirmed that it's getting an activation signal (this test section).

When you're ready to replace it, here are ignition coils from trusted automotive brands I personally use and recommend:

• Standard Motor Products UF242 Ignition Coil (Amazon affiliate link).
• Delphi Ignition Coil (Amazon affiliate link).

CASE 2: You got NO spark. Re-check all of your connections and repeat the test again. If still no spark, then this results eliminates the ignition coil as the source of the no-spark condition/misfire, since without the Triggering Signal the COP ignition coil will not work.

TEST 6: Checking For Carbon Tracks

If all of the ignition coils fired off spark in TEST 1 and yet the vehicle is experiencing a misfire condition, then the most likely causes are:

• The spark plug boots spark plugs have developed carbon tracks.
• The spark plugs and spark plug boots are swimming in engine oil.
• Both of the aforementioned conditions.

All of these conditions are a very common occurrence in this type of Coil-On-Plug ignition system.

If the spark plug boots and spark plugs are swimming in engine oil, it's usually due to the valve cover gasket leaking oil into the spark plug tubes. This oil will cause the ignition system to misfire and/or cause carbon tracks to form as the spark cooks the oil.

In the image above, you can see what a carbon track looks like on the spark plug boot and on the spark plug. The next step is to remove the spark plugs and spark plug boots to visually inspect them for carbon tracks and/or to see if they are all oil-soaked.

If the spark plugs are oil-soaked and/or with carbon tracks, you'll need to replace them all along with the spark plug boots. Failure to replace one without the other will only make the carbon track return and/or continue to misfire still.

Now, if no carbon tracks are visible on any of the spark plugs, or spark plug boots, then the ignition system is not the cause of your misfire condition. I would check engine compression and the fuel injectors among several things.

The following test tutorials may be of help:

• How To Test A Misfire Condition And Misfire Codes (1998-2007 3.0L V6 Honda Accord).
• How To Test Engine Compression (1998-2007 3.0L V6 Honda Accord).
