APPLIES TO: This circuit wiring diagram applies to the following vehicles:
- 4.6L Ford E150: 1997, 1998, 1999.
- 4.6L Ford E250: 1997, 1998, 1999.

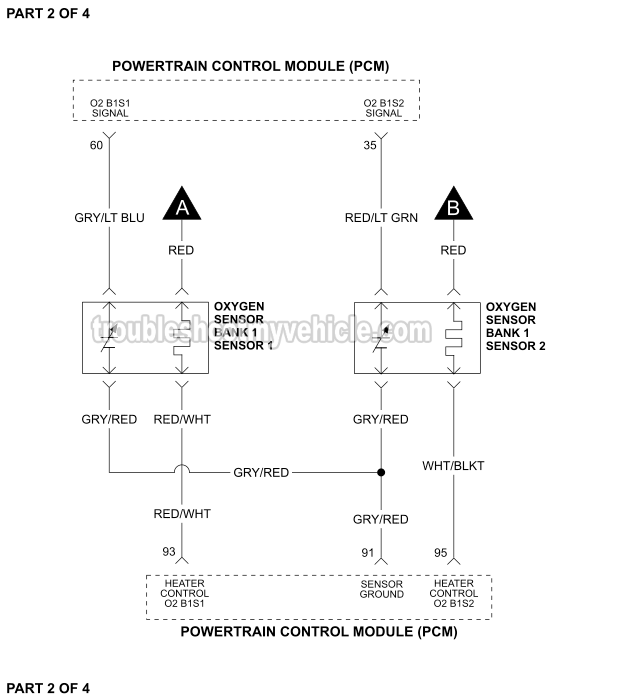

NOTE: This wiring diagrams includes the following circuit components:
- PCM Power Rely
- Oxygen Sensor B1S1
- Oxygen Sensor B1S2
- Oxygen Sensor B2S1
- Oxygen Sensor B2S2
The following wiring diagrams may come in handy:
- Oxygen Sensor Circuit Wiring Diagram (1997-2000 4.2L V6 Ford E150, E250)
- Oxygen Sensor Circuit Wiring Diagram (1997-1999 5.4L V8 Ford E150, E250, E350)
