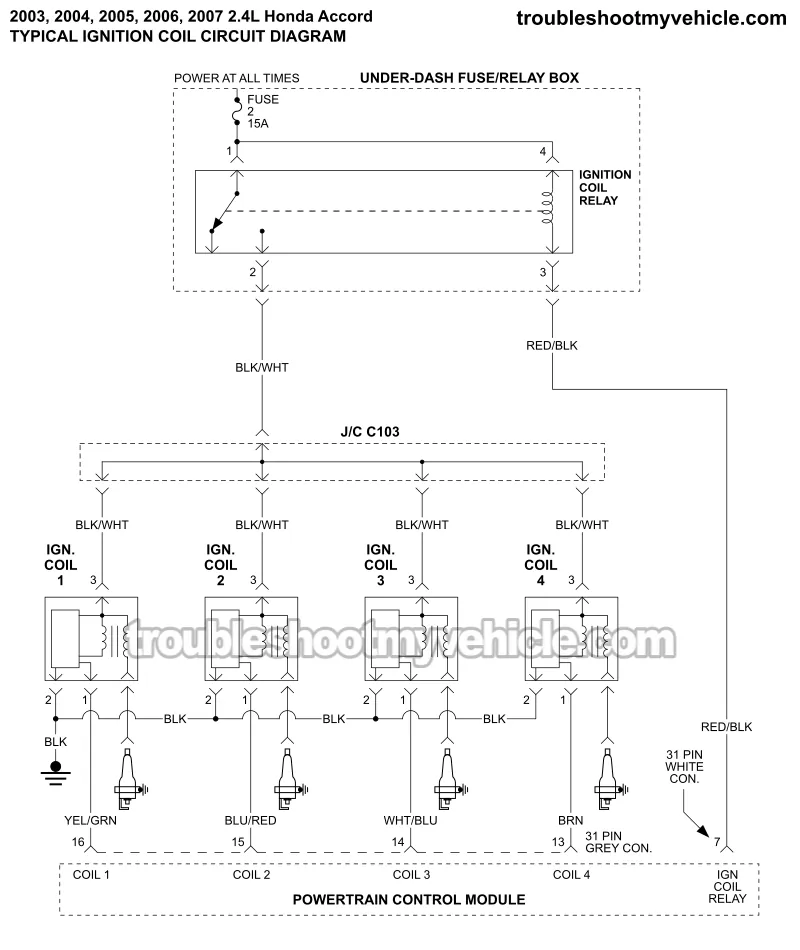

Ignition Coil Circuit Wiring Diagram (2003-2007 2.4L Honda Accord)

APPLIES TO: This ignition coil circuit wiring diagram applies to the following vehicles:

CKP SENSOR TESTS: This is a step-by-step tutorial on how to test the CKP sensor with a multimeter:

IGNITION COIL TESTS: The ignition coils are super easy to test, and in this tutorial I explain the process step-by-step:

ENGINE CYLINDER MISFIRE DIAGNOSTICS: If you're diagnosing a cylinder misfire issue, this guide is a good resource:

ENGINE NO-START DIAGNOSTICS:

Ignition System Circuit Wiring Diagrams

You can find a complete list of 2.4L Honda Accord wiring diagrams and diagnostic tutorials in this index:

Here's a sample of the tutorials you'll find there:
